How To Bleed ABS Module Without Scan Tool

How To Bleed ABS Module Without Scan Tool – Tips And Tricks

“How to bleed ABS module without scan tool?” is a question we’ve been hearing a lot recently. Right here in this article, we’ll tell you everything you need to know. Modern automobiles are equipped with automatic brakes that employ braking fluids and a pressure system. In a car, anti-lock brakes (ABS) are a must. It is critical for all passengers in this vehicle to comprehend ABS and, more particularly, the ABS module. However, not everyone can understand it completely.

Because brake fluid attracts moisture from time to time, the brake pedal’s impact may be reduced when you apply the brakes. Aside from that, it is recommended that you repair the hydraulics or ABS modulator of your Automatic Braking System (ABS) once in a while. When you’re slowing down in traffic, and you notice your brake pedal is particularly low and your brake response is slow, it could be an indication that you need to check your brakes for air.

What Is An Anti-lock Braking System (ABS), And How Does It Work?

Let’s look at what an ABS is and why we need one before learning how to bleed the ABS module without scan tool. ABS, or Anti-Lock Braking System, is a safety equipment feature that keeps a vehicle’s wheels from locking up in an emergency, crisis, or complex braking situations, allowing it to maintain road grip.

A Typical Anti-Lock Braking System Consists of Four Primary Components:

  • Speed Sensors

Speed sensors monitor the rotational speed of the wheel or wheels.

  • Valves

Valves in the brake line have three positions that allow, block, and release pressure on the brakes.

  • Pump

These hydraulic fluid-filled pumps apply pressure to the braking drums or calipers as needed.

  • Controller

The electronic control unit (ECU) is the ABS’s brain, and it takes information from various sensors to evaluate whether or not to apply the brakes.

ABS Module’s Function

In the anti-lock braking system, the ABS module takes the lead. An ABS module is usually found in the engine compartment or the vehicle’s left frame bar. When the ABS sensor detects that one wheel is rotating slower than the others when braking, the information is sent to the ABS module.

You Should Be Aware of the Following ABS Module Roles:

  • Supplying the ABS modulator with a control signal
  • Ensure safety and test mode, and save any broken codes.
  • Identifies wheel angle information and determines acceleration and deceleration to give the right speed. It also indicates the possibility of wheel slippage due to the wheel’s ability to stiffen.

When The Air Gets Into Your ABS, What Happens?

Air can enter the braking system in various ways, but they all have one thing in common: they all incorporate brake fluid. Your brakes are a hydraulic system, which means that they are fluid-powered.

When you press the brake pedal, brake fluid is sent out to the four corners of the car’s brakes. In a disc brake configuration, the fluid injected into the caliper forces the brake pads inward, clamping down on the rotor and slowing the automobile through friction.

Older forms of drum brakes work on the same principle; however, the braking compound portions wear down in shoes rather than pads in drum brakes. When you depress the brake pedal, the brake fluid pushes the shoes outward against the metal drum, slowing the vehicle through friction.

Because the front brakes do the majority of the work, many vehicles still use drum brakes in the rear. To keep things simple, we’ll refer to both shoes and pads as “pads” because they both contain the wear material that allows the brakes to stop.

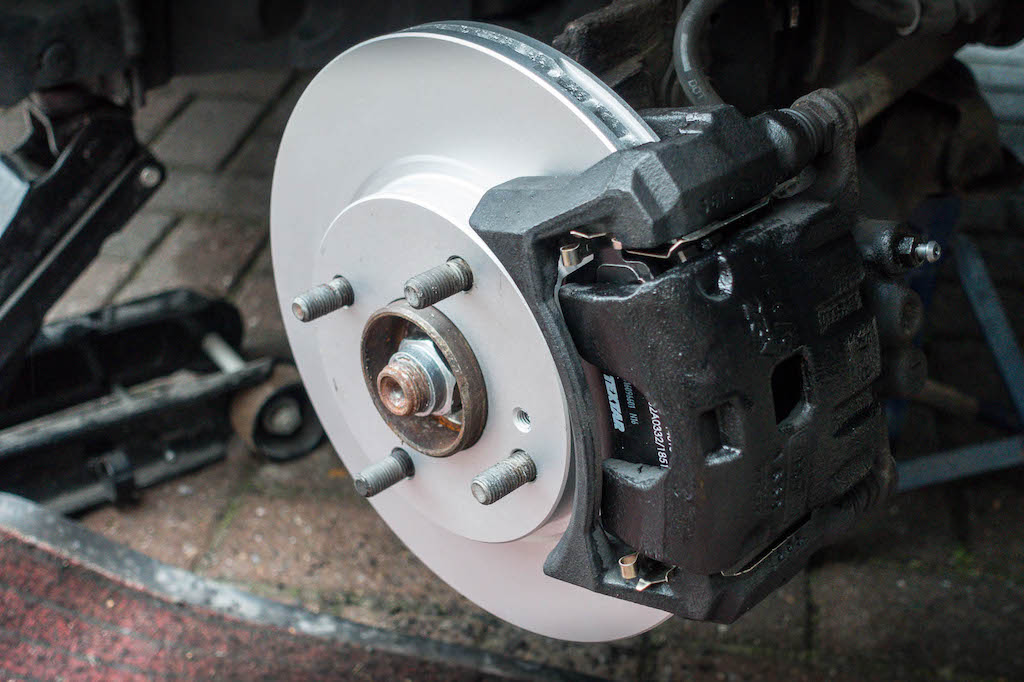

Bubbles In Brake Lines

Pads wear down over time and require more fluid to force them onto the braking surface. Some air bubbles may get into the brake lines if the brake pads wear down to the point where the fluid level in the master cylinder reservoir drops too low. Bubbles in the brake lines act as a very soft spring in the regular fluid column between the foot and the brake drums or calipers because air is much simpler to compress than liquid.

To remove the air, you’ll need to know how to bleed ABS brakes. It is highly advised that while bleeding out the air bubbles, all of the old fluid be flushed out of the system and replaced with new fluid. The brake fluid is contaminated over time by atmospheric debris, and abrasive metal wear fragments from moving components in the braking calipers and cylinders.

Bubbles In Brake Lines - bleed abs module without scan tool

Furthermore, brake fluid incorporates air moisture, which lowers the boiling point sufficiently to cause it to boil at the end of the downhill grade, where the brakes are engaged repeatedly or for an extended period of time. The alcohol-based fluid itself degrades under hot temperatures.

Anti Lock braking systems are less tolerant to polluted fluid and air than non-ABS systems. The ABS hydraulic pump generates thousands of psi, forcing braking fluid through tiny valves. It can turn brake and air-fluid into a latte-like foam, making draining air out of the system even more difficult.

To make matters worse, the little abrasive particles are easily damaged by the valves and ABS pump. Air that seeps into the ABS controller can bleed out, which is a good thing.

You can avoid ABS problems by continuing to bleed and flush the brake fluid on a regular basis, which you can do at home.

How Can I Tell If My ABS Module Is Defective?

When the ABS isn’t working, there’s a good possibility you’ll lose traction, spin, or powerslide under hard braking. It’s essential to consider the warning indications that an ABS is failing so that you can remedy the problem as soon as possible. The following are some of the most prevalent symptoms of a faulty ABS module.

The ABS Light Is Turned On

The ABS Light flashing is the most prevalent sign of a problem with the ABS system. It will be amber in hue, indicating that the ABS system is malfunctioning. A Check Engine Light may appear instead of an ABS Light on older cars with older versions of ABS systems.

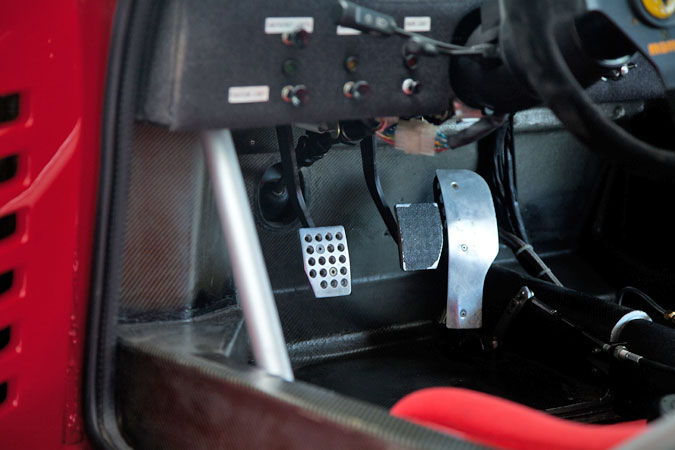

The Brake Pedal Isn’t Working

The brake pedal may not respond in specific circumstances when the ABS module fails, depending on the vehicle model. This is a fault you cannot overlook because a car with an unresponsive brake pedal will not stop or function safely. It usually happens gradually and over time. The brake pedal will typically get harder to push until it becomes unresponsive.

Brake Pedal is not Working - bleed abs module without scan tool

Pushing A Brake Pad Requires Greater Effort

When all of the braking system components are working correctly, pressing the pedal should require relatively little effort. It should have an immediate recognizable effect in slowing down the car once engaged. If you notice that it takes more effort to generate the same amount of braking force from the pedal, your ABS module may be malfunctioning.

The Brakes Are Squeaking

When the ABS system is functioning properly, it avoids the wheels from locking up during hard braking, which prevents traction loss. However, a defective ABS module can function erratically at times, causing the brakes to lock up even when driving normally. If your brakes perform abnormally, such as making random clicking noises or pumping the brakes, the ABS module may need to be replaced.

How To Bleed ABS Module Without Scan Tool

Since the ABS module contains many chambers and moving parts, bleeding ABS brakes is more difficult than bleeding the brake system. Most ABS modules feature bleeding valves; however, they are frequently insufficient to remove all air.

While the process is time-consuming, it is not overly challenging to do so. The steps for bleeding air from an ABS module are outlined below. Follow the steps below of how to bleed ABS module without scan tool.

What You Will Require:

It’s not difficult to bleed the ABS module. However, because each wheel must be bled independently, this may take some time. If you’re wondering How to bleed ABS module without scan tool, here’s what you’ll need:

  • Car Jack
  • Jack Baster
  • Brake fluid
  • Drip pan
  • Hammer
  • Wrench
  • Car Stands

Step 1: Get Ready

To begin, park the vehicle on a level surface with adequate lighting and ventilation. To ensure that the emergency brakes are deployed, engage the parking gear.

Step 2: Take Off The Wheels

Lift the vehicle up to a comfortable level with the car jack so that you can easily remove the four wheels and reach the bleeders.

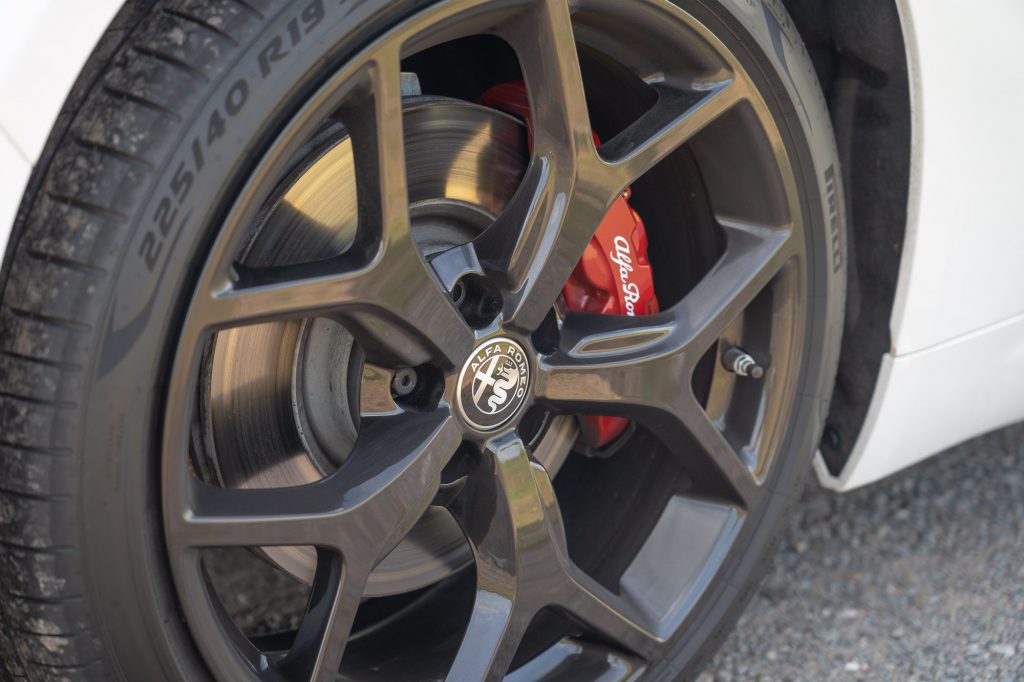

Step 3: Remove The Brake Fluid

Your car’s braking fluid solution is kept under the hood. Each wheel is connected to a small transparent container by metal tubes. These are what are known as brake lines. When you’ve found the reservoir, completely drain the old brake fluid and replace it with new. Before buying, make sure you acquire the proper fluid for your vehicle by consulting a reliable mechanic.

Remove the Brake Fluid - bleed abs module without scan tool

Step 4: Identify The Brake Bleeder Screw

The bleeding port in the brake caliper is the next stage in how to bleed ABS module without scan tool. To release the bleeder screw, use the right bleeder wrench, remove the dust cap. Now take the vacuum hose and tubing, placing one end in an empty plastic bottle and the other end on the bleeder screw.

Assist yourself by constantly pumping the brake until all of the fluid has been emptied into the bottle. After you’ve completed all of the wheels, check to see if the brake fluid reservoir is truly empty. ​

Step 5: Refill The Cylinder And Tighten The Bleeder Screw

Before you reattach the bleeder screw, have your companion press the brake pedal all the way down and hold it there. To let trapped air out, open the bleeder screw and tell him to maintain holding the pedal until the bleeder screw is tight as it was before.

This procedure must be repeated numerous times to guarantee that no air bubbles remain in the brake lines. Keep in mind that you must perform this for all of the wheels and in the order listed below:

  • Right-back
  • Left-back
  • Right-front
  • Left-front

The bleeding procedure differs based on the vehicle model and the ABS system installed. Most generic ABS should work with the steps we described. Next is to open the master cylinder and fill it with new brake fluid till it’s full. To avoid draining the master cylinder and allowing air into the system, keep an eye on the fluid levels on the master cylinder while draining the braking fluid.

Step 6: Look For Leaks

After bleeding all of the brake lines, instruct your friend to push the brake pedal as you walk around the vehicle, looking for any leaks caused by the pumping. During this time, your friend should make sure the pedal is adjusted to the proper settings. ​

Step 7: Reassemble The Components

The final step in how to bleed ABS module without scan tool is to reinstall all of the wheels and test your brakes. Take a test drive to make sure the brakes are functioning properly. Also, remember to clean up the area in case you spilled the residual liquid. Priority should be given to safety.

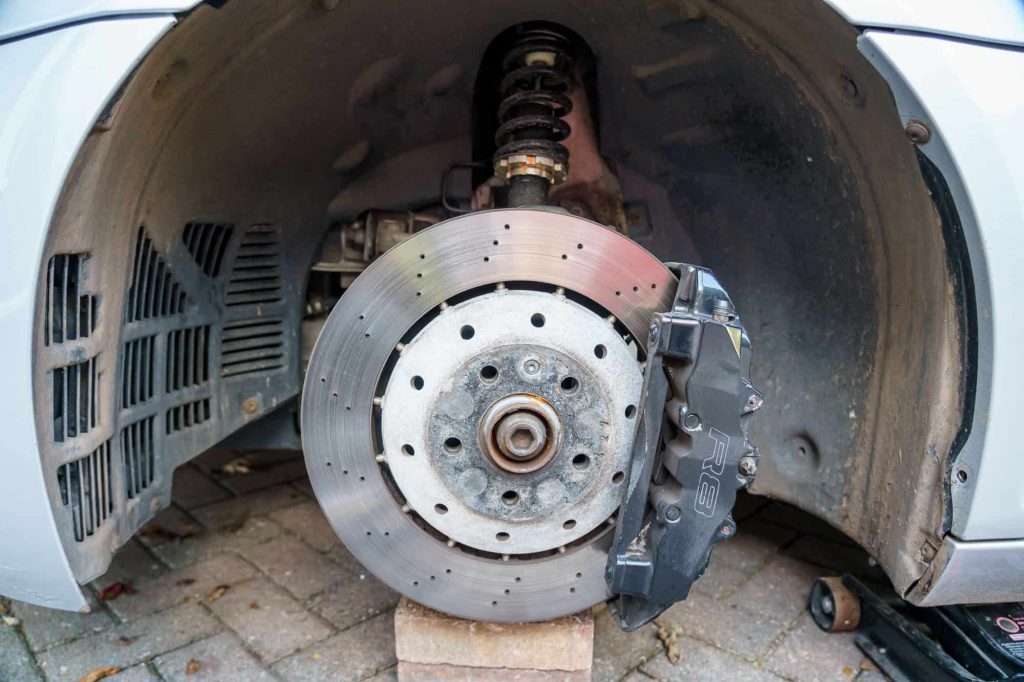

When Should You Bleed Your Brakes?

In normal operation, the braking system does not require bleeding. However, there are some circumstances in which bleeding is required:

When Should You Bleed Your Brakes

Brake Pads That Are Completely Worn Out

As a result, the fluid level in the master cylinder decreases. Air gets into the brake system if it descends too far.

Replacement Of A Disc Brake Caliper Or A Drum Brake Cylinder

This necessitates the disconnection of the brake cables. Air will enter the brake lines if this happens.

Replacement Of Various Additional Braking System Components

Air gets into the brake lines due to a detached hydraulic part within the brake system. A good example is the master cylinder.

Compressed Caliper Piston

When changing brake pads, you may need to open the bleeder valve to compress the piston. This can allow air to enter the braking lines.

What Happens If You Don’t Bleed Your Brakes?

What happens if air gets into the brake lines and the brake system isn’t bled? The brakes will not be responsive. You will face the following problems:

  • Brakes that are weak
  • Stopping distances are longer

Until you bleed the brake system, air will remain in the system. To grip the brake pads against the rotor, the caliper pistons require enough hydraulic pressure. Air bubbles reduce hydraulic pressure, causing your car’s braking performance to suffer. You should bleed your brakes whenever necessary as a precaution.

Why Is It Challenging To Bleed In ABS Systems?

It’s important to get that excess air out of your hydraulic brake lines if you want your brakes to work properly. Excess air or contamination in the fluid lines causes pressure gradient changes, requiring you to exert extra effort while pressing the brakes. Worse yet, if such gradient imbalances go unchecked, the brake pump and valves may be compromised.

Because anti-lock brakes are more sensitive, bleeding becomes a more important aspect of their maintenance. However, compared to non-ABS systems, there is a more difficult bleeding process involved. This is due to a sensor located between the master cylinder and the brake calipers.

The anti-lock effect is achieved when this sensor detects wheel slippage and adjusts braking pressure accordingly. However, this sensor has the potential to make the bleeding process more difficult than it needs to be.

The ABS bleeding scan tool comes into play at this point. Different companies use different scanning instruments for their “unique” braking systems, and acquiring these technologies is not inexpensive.

Some of these scanners are expensive, costing hundreds of dollars or more, and can only be utilized in a small number of vehicles. Due to the apparent “need” for these scanners, company service centers and specific experts can charge a lot for brake maintenance and parts replacement.

How To Bleed ABS Module Without Scan Tool – FAQs

What Is The Procedure For Resetting My ABS System?

Ans: To deplete the car’s electrical system, disconnect the positive line from the battery and then press down on the brake pedal. The car’s central computer will be reset as a result of this. If the light turns back on, replace the ABS sensor.

Why Are My Brakes So Spongy After They’ve Been Bled?

Ans: When the air gets into the brake lines, it stops the braking fluid from flowing properly, making the brake pedal feel spongy or soft. This is a good opportunity to change or flush the brake fluid if the brakes are soft or spongy. When bleeding the brakes, fluid is used to drive air out of the system.

What Is The Procedure For Replacing An ABS Module?

Ans: Following is the Step by Step guide for the replacement of an ABS Control Module:

  • Put the transmission in the park and the emergency brakes on before parking your vehicle on a level surface.
  • Disconnect the cable from the battery’s negative end.
  • The ABS control module can be found in the engine compartment.
  • Disconnect the module’s electrical connectors.

Is It Possible For ABS To Generate A Spongy Brake Pedal?

Ans: ABS is almost certainly installed in your vehicle. When your ABS system fails, you may notice a mushy brake pedal. In a high-speed stop, your ABS system is designed to help the driver maintain more control of the vehicle.

What Is The Best Way To Depressurize My ABS System?

Ans: Put the ignition switch to the Off position, then depressurize the system by pushing the brake pedal forcefully. After cleaning the reservoir and diaphragm assembly, remove the reservoir lid assembly. Reinstall the cover after filling the reservoir to the proper level. Begin with the front bleeder on the right.

What Are The Symptoms Of A Brake Booster That Isn’t Working Properly?

Ans: The signs and symptoms of a failing brake booster are listed below.

  • On the console, there is an illuminated brake warning light.
  • Brake fluid leakage.
  • Inadequate braking pressure or squeaky brakes.
  • Spongy brakes or a sinking brake pedal are both possibilities.
  • When you apply the brakes, your engine can misfire or stall.

Will The ABS Light Turn On If Air Gets Into The Braking Lines?

Ans: The ABS uses hydraulic brake fluid to manage the pressure, just like the rest of the braking system. A lack of fluid in the reservoir may prevent ABS from working properly, causing the ABS light to remain illuminated. Another likely culprit is an excessive amount of air in the system.

Is It Better To Bleed Brakes With The Car On Or Off?

Ans: If you meant to bleed the brakes at the calipers to remove air from the system, you should do so while the car is turned off. The brake booster, which is a big diaphragm that amplifies brake force, is powered by the engine vacuum, which should not be turned on.

How To Bleed ABS Module Without Scan Tool; Final Verdict:

After changing a component of the brake system, it is necessary to bleed the brake system.

This entails getting rid of all of the air in the system. The rationale for bleeding the brakes is that air is compressible, and if there is any air in the system, the brake pedal will feel soft. The brake pedal will be squishy and mushy because the air must be moved out of the way before the fluid can do its job.

How to bleed ABS module without scan tool may appear to be a challenging task, but regardless of the type of car you have, the procedures we have shown should help you overcome the problem. Because the operation is frequent and needs accuracy while emptying the brake fluid, you should prepare ahead of time. You’ll also need a partner to help you through this long procedure. If you want to bleed the ABS module at home without using a scan tool, hopefully, this post will be useful.
