Like most drivers, many of us are only familiar with the check engine light. But what you may not be aware of is that vehicles also have a transmission light that illuminates to notify you of a problem with the transmission. Unfortunately, not all vehicles have this distinct part. Older cars, especially, lacked one of these.

In fact, if you had a serious transmission problem, it would pop out at your rock bottom or when you least expected it. Nowadays, most vehicles contain an automatic transmission light as an advanced warning system. However, they are very costly to replace, so it’s worth the effort to keep them in good condition.

In this guide, we’ll look at what the transmission warning light means, and what causes it to turn on. Moreover, we’ll discover the numerous symptoms that you might experience if your transmission is failing. And, to ensure that your transmission can last as long as possible, we have some tips on preventive maintenance and regular servicing.

Transmission Light Meaning

There could be various possibilities behind your transmission light appearance. If you notice the transmission light on your dashboard, it means there could be an issue with your vehicle’s automatic transmission or other associated elements.

Some vehicles turn on this warning light when the transmission is seemingly overheating or if there’s an issue with the overdrive or traction control light. Others use it as a general indicator of a wide range of transmission-related problems.

It’s also worth noting that for other models and makes of vehicles, the transmission light doesn’t always warn of a problem; it may be an alert for maintenance. For instance, it could mean a low transmission fluid, which ought to be checked every 30,000 to 60,000 miles or so. In that case, call your nearest dealer or check your owner’s manual to be sure what to be on the lookout for.

Transmission Light Symbol

Not all vehicles use a similar transmission light to warn you of an issue with your transmission. There’s a unique warning light in every vehicle depending on your car’s year, make, and model. It’s possible that, in case of a transmission problem, a different light may cover up this area.

It could be an overdrive warning (for more insight, check out our guide on the meaning of O/D off), a service engine light, or a traction control light. Again, it can be an uphill task to ascertain what the light means unless you consult your owner’s manual. It should tell you the type of warning to be watchful for in case of a problem.

If your transmission light appeared because of a transmission problem, there might be a number of symptoms you can look at to confirm an ongoing problem that needs to be addressed promptly.

Transmission Failure Signs

Transmission problems may manifest in various ways and have an uncanny way of escalating pretty fast. Sometimes, the issue is cheaply fixed, but if left unchecked, you may find yourself having to purchase an entire transmission overhaul, which can be very costly compared to the cost of repair.

Therefore, it’s worth being aware of some early signs of a possible transmission failure so you can consider heading to a mechanic to get the problem fixed. Here are the most common symptoms of a failing transmission.

Transmission Light, Symptoms #1: Burning Smell

While a burning smell is a common type of phantosmia, it should be a cause for concern when it comes from your engine. If you notice a burning smell, it’s a clear indicator that something isn’t right.

A burning smell results from a contaminated fluid or fluid that has become old that it can hardly perform its task properly. It, therefore, overheats and starts burning, making your engine very hot. This, in turn, leads to premature wear, corrosion, and excess debris.

Transmission Light, Symptoms #2: Noises In Neutral

Your car shouldn’t make any noise when in neutral. But if you rapidly hear a clunking, humming, or whining noise beneath your vehicle that’s unusual, you may have a transmission problem. Even though it may be a minor issue, it could indicate something worse.

These noises could be a result of a breakdown in your transmission fluid or other mechanical issues. The transmission fluid has the hefty task of ensuring the mechanical gears and elements are lubricated. However, with frequent use and time, the fluid’s lubricating ability weakens and fails to stop friction, damaging the transmission system, which is quite expensive and inconvenient.

If you hear a clunking noise and suspect it’s coming from your transmission, the transmission already has an internal part breaking down. If so, it’s prudent to have a professional transmission mechanic examine it right away.

Transmission Light, Symptoms #3: Leaking Fluid

Have you ever experienced a possibly dirty dark red or a bright red fluid along your garage floor or driveway? That’s likely transmission fluid.

Since transmission fluids are never meant to leak, this may lead to a severe or complete breakdown of the transmission, which is inconvenient and expensive.

Unlike motor oil which expires over time, transmission fluid doesn’t usually reduce too quickly due to mileage and time. Therefore, if you find that you’re short of transmission fluid, it means there’s a leak somewhere. Less fluid can lead to greater friction in your transmission, which will crash essential components inside and ultimately lead to a transmission breakdown.

Although a leak is often a low-cost service (entails replacing a hose or leaking gasket), don’t ignore it. Remember, neglecting a small transmission problem could lead to a much bigger and more serious problem.

Transmission Light, Symptoms #4: Slipping Gears

If your car slips out gears, that’s a serious safety problem. It’s even terrifying when it happens while you’re out driving and need to give it the gas to avoid a crisis. Gear slipping is usually caused by worn transmission bands and low fluids. If your vehicle’s transmission happens to slip in and out of gears, make sure to have it checked by a mechanic.

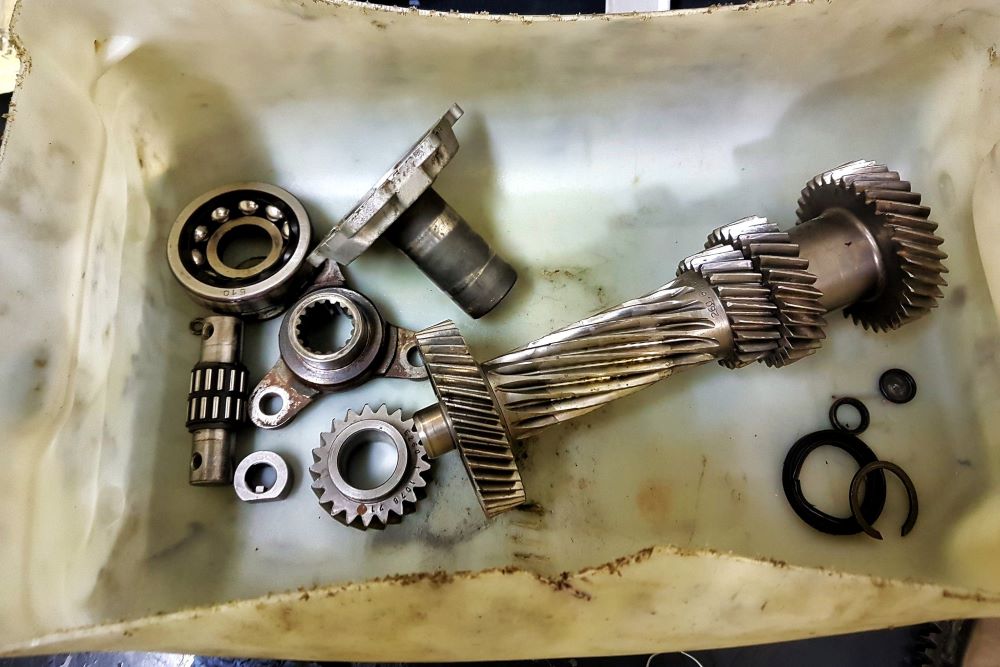

Transmission Light

Junkyard: VW Gears” by Ian E. Abbott is licensed under CC BY-NC-SA 2.0 .

Transmission Light, Symptoms #5: Shaking Or Grinding During Gear Shifts

A vehicle’s transmission operates effortlessly when shifting gears. You shouldn’t feel shaking or grinding sensations while switching gears. Grinding or shaking sensations while shifting gears indicate a faulty transmission.

While these symptoms may seem trivial, it’s best to pay attention to your transmission immediately as they arise because it can probably worsen with time and use. If you come across such sensations while shifting gears, be sure to take your car to a transmission specialist soon.

Transmission Light, Symptoms #6: Car Won’t Respond When In Gear

A functional gear will slide into the right gear, and the car will respond promptly to the changes. If your vehicle is hesitant to respond when you place it into reverse or drive, it means something’s wrong, and it’s usually the transmission. It might indicate an issue with your fluid whose protective properties have worn out and has become thick. Here, a fluid exchange would help.

Sometimes, your vehicle may be having a computer system problem. In that case, resetting the vehicle’s computer can help resolve the issue as well. Simply disconnect the battery for about 30 minutes for it to reset.

In a manual vehicle, this delay in shift is often accompanied by a surge in revolutions per minute (RPM) as well as engine noise that differs from your car’s speed. The only way to be aware of the underlying issue is to take it for service.

Transmission Light, Symptoms #7: Check Engine Light Is On

The check engine light illuminates to alert you of any upcoming or existing problems in your car. However, the light may also indicate an issue from diverse systems in your vehicle, not just the transmission. And even though you should get your car checked when the engine light shows, many drivers opt to ignore it and continue driving with it on.

One way to ascertain why the engine light illuminates without visiting a mechanic is by investing in your own OBD2 Scanner. It’s a diagnostic tool used by mechanics to diagnose the warning lights that show up on your dashboard.

When you plug this tool into your vehicle, it’s able to give a readout that indicates the nature of the problem that caused the light to illuminate, hence directing you to the specific part causing the problem, which in this case means the transmission.

It’s also important to note that the OBD2 scanner doesn’t fix the problem, but only informs you if what you’re dealing with is transmission, catalytic converter, the alternator, or other issues that may arise beneath your hood. This way, you can assess how rapidly you need to visit the mechanic and fix the problem.

Transmission Light, Symptoms #8: Delayed Engagement

When you shift from “park” to “drive,” your vehicle should immediately engage and move forward. If there’s a noticeable pause before the car starts to move, you’re experiencing a delayed engagement.

This can be disconcerting, especially when you’re trying to merge onto a highway or move quickly. Often, delayed engagement is a sign of a worn transmission or low transmission fluid. Addressing the issue promptly can prevent further damage.

Transmission Light, Symptoms #9: Hard or Erratic Shifts

While transitioning from one gear to another, shifts should be smooth. If you feel a jarring “thud” or notice the shift occurring at unusual RPMs, these hard or erratic shifts can point to transmission trouble.

Several factors can cause this, from worn internal components to faulty sensors or electrical issues. Regularly maintaining your transmission fluid and servicing your car can help in detecting and addressing such symptoms.

Transmission Light, Symptoms #10: Unusual Smell from Transmission Fluid

Transmission fluid typically has a slightly sweet smell. If the fluid starts to smell unusually tart or acrid, it may be breaking down or burning due to overheating. Overheating can degrade the fluid and reduce its protective qualities, leading to faster wear and tear on the transmission components.

Transmission Light, Symptoms #11: Whirring Sounds After the Car is Turned Off

Normally, once the engine is off, all sounds should cease. However, if you hear a faint whirring or spinning sound, this could indicate a problem with the transmission’s torque converter. The torque converter is responsible for transferring power from the engine to the transmission. Any unusual behavior linked to it can indicate looming transmission issues.

Transmission Light, Symptoms #12: Vehicle Surges or Lurches

If your vehicle randomly surges forward or backward without a change in the accelerator pedal’s position, it might be a sign of a transmission problem. Such unexpected movements can be both startling and dangerous, especially in traffic. It can result from erratic fluid pressure within the transmission, faulty solenoids, or other internal component failures.

Transmission Light, Symptoms #13: Manual Transmission Pops Out of Gear

For those driving manual cars, if your transmission pops out of gear while driving, it’s a sure sign something’s amiss. This symptom indicates worn internal components like bearings or gears. It’s not only disruptive to driving but also a safety hazard as it can lead to loss of vehicle control.

Transmission Light, Symptoms #14: High Transmission Fluid Temperature

Modern cars often come equipped with transmission temperature gauges. If yours consistently reads high, it indicates your transmission is working too hard and overheating. Overheated transmission fluid can’t protect components as efficiently, leading to premature wear.

Transmission Light, Symptoms #15: Unusual Vibrations

If you start feeling unusual vibrations while driving, especially at certain speeds, it might point to a transmission issue. While other factors like wheel balance can also cause vibrations, when tied with other symptoms, it’s worth checking the transmission.

In conclusion, the transmission is a vital component of your vehicle, and its health is paramount to safe and smooth driving. Regularly servicing and paying attention to the above symptoms can save you from more extensive and costly repairs in the future. If you notice any of these signs, it’s best to consult a professional mechanic to ascertain the cause and get it resolved promptly.

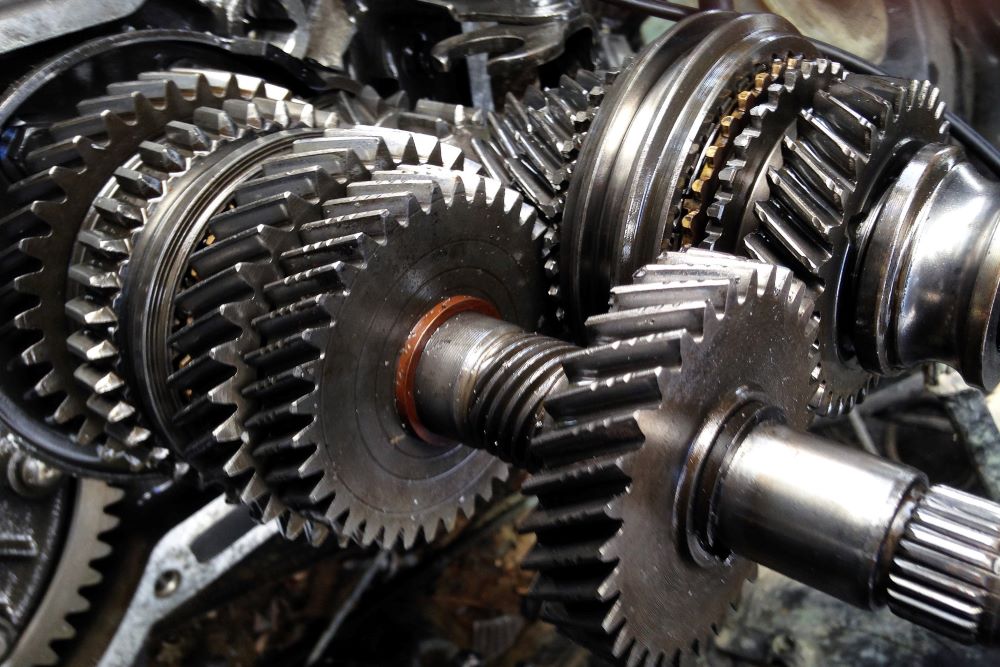

Transmission Light

BMW 635CSI Getrag manual transmission overhaul. it’s go time, project is back in gear…” by the_forgotten_nomad is licensed under CC BY-NC-ND 2.0 .

Transmission Light Blinking

When everything’s okay with your car and the transmission light is off, then you have nothing to worry about. When the transmission light appears, that’s a sign you may have a transmission problem, and you ought to take it to the mechanic to be fixed.

However, there are other instances where you may come across a blinking transmission light, which can be extremely perplexing because that’s not a regular kind of warning. If your transmission light is flashing on and off, it’s often linked to an overheating problem with your transmission.

This may happen for various reasons, but it’s mainly due to low transmission fluid. It’s thus unable to keep your transmission functioning at the right temperature. And for that reason, it starts to overheat.

Causes Of Transmission Failure

Unfortunately, there is no versatile cause of illuminated transmission light. Some of the most common causes of the light include:

Transmission Light, Failure Causes #1: Low Fluid Level

A low fluid level may cause various transmission performance problems, which can lead to internal damage. If your transmission happens to have insufficient fluid, the system will identify the unusual vehicle operation and turn on the transmission light.

Symptoms of Low Fluid Level:

  • Slipping Gears – When fluid levels are too low, transmissions may slip between gears, causing abrupt shifts or loss of power.
  • Delayed Gear Engagement – Engaging the vehicle in drive or reverse might have a noticeable delay.
  • Overheating – Transmission fluid acts as a coolant. Insufficient levels can lead to transmission overheating.
  • Noisy Transmission – Whining or clunking sounds, especially when in neutral.

Causes and Reasons for Low Fluid Level:

  • Leakage – Over time, transmission seals, gaskets, or lines may develop leaks.
  • Improper Fluid Fill After Service – After a transmission service or repair, the fluid might not have been replenished to the correct level.
  • Wear and Tear – Older vehicles may naturally consume more transmission fluid.
  • Faulty Transmission Cooler – If it’s malfunctioning, it could lead to fluid loss.

Diagnosis and Troubleshooting:

  • Check the Transmission Dipstick – This can determine the fluid level and its condition (color and smell).
  • Visual Inspection – Look beneath the car for any puddles or spots of red or brown fluid.
  • OBD Diagnostic Codes – Some codes related to low fluid might include P0218 (Transmission Overheat Condition) or P0868 (Transmission Fluid Pressure Low).

DIY Repairs/Fixes:

  • Top Off the Fluid – After confirming the right type for your vehicle, add fluid to the proper level.
  • Inspect and Replace Leaking Components – Identify any leaking gaskets or seals and replace them as needed.
  • Install a Transmission Cooler – If your vehicle doesn’t have one, consider adding an external transmission cooler for added protection.

Repair/Replacement Costs:

  • Transmission Fluid – Costs can range from $30 to $100 for quality fluid, depending on the brand and quantity.
  • Gasket and Seal Replacement – Labor and parts combined can range from $200 to $500, depending on the vehicle and location.
  • Transmission Cooler – Prices range from $50 to $150 for the part, with labor adding another $100 to $200, based on complexity.

In conclusion, a low transmission fluid level is a common but potentially damaging issue for vehicles. Addressing the problem promptly can prevent costly repairs down the line. Monitoring fluid levels and addressing leaks when they’re spotted can go a long way in maintaining the longevity of a vehicle’s transmission system.

Always consult a professional mechanic for thorough diagnostics and expert advice.

Transmission Light, Failure Causes #2: Torque Converter Issues

Most transmission designs have a torque converter which acts as a fluid connecting device between the transmission and the engine. A lockup clutch in the converter offers a mechanical connection between the transmission and the engine under certain conditions.

With time, the converter may start causing problems, such as slippage and shuddering. On other occasions, a lousy converter may even split and contaminate the transmission with debris. Such issues may cause the transmission light to turn on.

Symptoms of Torque Converter Issues:

  • Shuddering – Often feels like the vehicle is driving over rumble strips even on a smooth surface.
  • Slippage – The transmission might seem like it’s slipping out of gear, resulting in decreased power.
  • High RPMs – The engine revs higher than usual before switching gears.
  • Overheating – The transmission may overheat due to added stress from the malfunctioning torque converter.
  • Strange Noises – Hearing whirring, clicking, or grinding sounds when the vehicle is in gear.

Causes and Reasons for Torque Converter Issues:

  • Worn or Damaged Needle Bearings – If these bearings get damaged, they can lead to metal-on-metal contact.
  • Damaged Lockup Clutch – Over time, the lockup clutch may deteriorate, leading to slippage.
  • Contaminated Transmission Fluid – Dirty or low fluid can hinder the torque converter’s performance.
  • Faulty Torque Converter Solenoid – This affects fluid flow, altering converter performance.

Diagnosis and Troubleshooting:

  • Stall Speed Test – Measures the efficiency of the torque converter and identifies slipping.
  • Transmission Fluid Inspection – Look for particles in the fluid, which might indicate internal damage.
  • OBD Diagnostic Codes – Codes related to torque converter issues include P0740 (Torque Converter Clutch Circuit Malfunction) or P0741 (Torque Converter Clutch Circuit Performance or Stuck Off).

DIY Repairs/Fixes:

  • Fluid Replacement – If contamination is the issue, completely drain and replace the transmission fluid.
  • Solenoid Replacement – If diagnostics pinpoint the solenoid as the issue, it can be replaced, but this requires more expertise.
  • Note: Torque converter replacement is a complex task. Consider professional help for this job.

Repair/Replacement Costs:

  • Transmission Fluid Change – Costs range from $80 to $250, depending on vehicle type and local labor rates.
  • Solenoid Replacement – For parts and labor combined, the range is $150 to $400.
  • Torque Converter Replacement – Prices can go from $600 to $1000, inclusive of parts and labor, though high-end or luxury vehicles might cost more.

To safeguard your vehicle’s performance, always be vigilant to signs that indicate torque converter issues. Keeping transmission fluid clean and at the right levels can stave off many problems. Remember, a malfunctioning torque converter can lead to significant transmission damage if left unchecked. Address concerns promptly and seek professional guidance when in doubt.

Transmission Light, Failure Causes #3: Shift Interlock Issues

The illumination of a transmission light doesn’t necessarily imply there’s an issue with the transmission itself. For instance, in some BMWs, the light may show up when your car has an issue with the shift interlock system- a feature that stops a driver from shifting a gear selector out of ‘park’ without depressing the pedal.

Symptoms of Shift Interlock Issues:

  • Unable to Shift out of Park – Even after pressing the brake pedal, the gear selector doesn’t move.
  • Intermittent Shifting Issues – At times, the gear might shift out of park, but on other occasions, it remains stuck.
  • Warning Lights – Along with the transmission light, other dashboard warnings might illuminate.
  • Hearing Clicking Sounds – When trying to shift out of park, a distinctive click might be heard without movement.

Causes and Reasons for Shift Interlock Issues:

  • Damaged Brake Light Switch – If this switch malfunctions, the car might think the brake pedal isn’t being depressed.
  • Blown Fuses – A blown fuse in the interlock system can disrupt its functionality.
  • Worn Interlock Solenoid – Over time, the solenoid controlling the interlock can wear out or fail.
  • Malfunctioning Shift Lock Release – This mechanism can get damaged or jammed.

Diagnosis and Troubleshooting:

  • Brake Light Test – Confirm if the brake lights illuminate when the pedal is depressed. If they don’t, it might be the brake light switch.
  • Fuse Inspection – Check the vehicle’s fuse box for any blown fuses related to the shift interlock.
  • Listening for Solenoid Operation – When the brake pedal is depressed, listen for the solenoid’s click. The absence of sound could indicate a faulty solenoid.
  • OBD Diagnostic Codes – Though shift interlock issues might not always produce codes, some vehicles may show relevant codes.

DIY Repairs/Fixes:

  • Brake Light Switch Replacement – Often located near the brake pedal, this is a relatively straightforward fix with the right part.
  • Replace Blown Fuses – Consult the vehicle manual for the appropriate fuse and replace it as needed.
  • Shift Lock Release – Some vehicles have a manual shift lock release button, typically near the shifter, which can temporarily solve the issue.
  • Note: Always address the root cause to prevent the problem from recurring.

Repair/Replacement Costs:

  • Brake Light Switch Replacement – Parts cost around $15 to $65, with labor adding $50 to $100.
  • Fuse Replacement – Fuses are inexpensive, often $1 to $5, but labor can add $20 to $60 if done by a professional.
  • Interlock Solenoid Replacement – Parts and labor combined can range from $150 to $300, depending on vehicle make and model.

The shift interlock system is an essential safety feature in modern vehicles. While issues with it might seem minor, they can be inconvenient and, if left unaddressed, might lead to more significant complications. Always take any changes in your vehicle’s behavior seriously and get professional advice when needed.

Transmission Light, Failure Causes #4: Internal Transmission Failure

Automatic transmissions are intricate features with numerous internal constituents, including planetary gear sets, clutch packs, etc. Suppose one or a number of those constituents fail, the system will notice the unusual vehicle operation and, as a result, turn on the warning light.

Symptoms of Internal Transmission Failure:

  • Erratic Shifting – The transmission might skip gears, or shift unpredictably.
  • Noisy Operation – Whining, grinding, or clunking sounds can be heard, especially in neutral.
  • Delayed Gear Engagement – There’s a noticeable pause before the car engages into drive or reverse.
  • Vehicle Doesn’t Move – In extreme cases, the car might not move at all, regardless of the gear it’s placed in.
  • Transmission Fluid Discoloration – The fluid may appear dark or have a burnt smell, indicating internal wear or damage.

Causes and Reasons for Internal Transmission Failure:

  • Wear and Tear – Over time, mechanical parts can naturally degrade and fail.
  • Insufficient Lubrication – Low or old transmission fluid can lead to excessive friction.
  • Overheating – Consistent overheating can warp and damage internal components.
  • Driving Habits – Aggressive driving or towing heavy loads can accelerate wear.

Diagnosis and Troubleshooting:

  • Transmission Fluid Inspection – Check for a burnt smell or metal shavings in the fluid.
  • Manual Pressure Test – This assesses the condition of the hydraulic circuits.
  • OBD Diagnostic Codes – Codes might include P0730 (Incorrect Gear Ratio) or P0745 (Pressure Control Solenoid Malfunction).
  • Professional Transmission Inspection – Given the complexity, a thorough inspection by a mechanic is often required.

DIY Repairs/Fixes:

  • Fluid Change – Fresh fluid can sometimes alleviate minor issues, but won’t fix damaged components.
  • Solenoid Replacement – If a solenoid is faulty, experienced DIYers can consider replacing it.
  • Note: For intricate internal problems, a professional repair or full transmission replacement is often necessary.

Repair/Replacement Costs:

  • Transmission Fluid Change – Costs vary from $80 to $250 based on vehicle type and service rates.
  • Solenoid Replacement – Combined parts and labor can range between $150 and $400.
  • Transmission Rebuild or Replacement – Depending on the vehicle’s make, model, and extent of the damage, costs can range from $1,800 to $5,000 or more.

Internal transmission failures can be daunting, given the complexity and potential costs involved. Preventative maintenance, including regular fluid checks and changes, can help stave off many issues. However, if faced with significant internal failure, seeking guidance from a trusted automotive professional is crucial to ensure the longevity and safety of the vehicle.

Transmission Light, Failure Causes #5: Transmission Overheating

Transmission overheating is considered one of the most common causes of illuminated transmission light.

The primary cause of overheating might be anything ranging from an internal transmission problem to an obstructed transmission cooler (for more insight, check out our transmission cooler line diagram and the Ford F-150 transmission cooler line replacement). Other driving habits like towing an extremely heavy load might as well cause the transmission to overheat.

Symptoms of Transmission Overheating:

  • Delayed Gear Shifting – Unusual delays when switching gears.
  • Burning Smell – Overheating transmission fluid has a distinct burnt odor.
  • Transmission Slipping – Momentary loss of power or uncommanded shifting of gears.
  • Reduced Transmission Fluid Level – Overheating can cause the fluid to evaporate or leak.
  • Erratic Transmission Behavior – Unusual jumps or hard shifts without clear reason.

Causes and Reasons for Transmission Overheating:

  • Clogged or Malfunctioning Cooler – An obstructed transmission cooler impedes the cooling process.
  • Low Transmission Fluid – Insufficient fluid increases friction and heat generation.
  • Heavy Loads or Towing – Pulling a substantial load places extra stress on the transmission.
  • Worn Out or Slipping Components – Internal parts that aren’t engaging properly can generate excess heat.
  • Torrington Bearings Failure – These bearings reduce friction between rotating parts, and their failure can lead to overheating.

Diagnosis and Troubleshooting:

  • Transmission Fluid Inspection – Check for discoloration, burnt smell, or metal fragments.
  • Cooler Line Diagram Review – Reference the diagram for any blockage or issues in the cooler lines.
  • External Transmission Cooler Inspection – Ensure there are no obstructions preventing airflow.
  • OBD Diagnostic Codes – Some related codes could include P0217 (Transmission Overheat Condition) or P0218 (Transmission Over Temperature Condition).

DIY Repairs/Fixes:

  • Transmission Fluid Change – Replacing old or burnt fluid can sometimes reduce overheating incidents.
  • Transmission Cooler Cleaning – Ensure the external cooler is clean and not obstructed.
  • Transmission Cooler Line Replacement – If the lines are clogged or leaking, consider a replacement.
  • Note: Serious overheating problems, especially those internal to the transmission, often require professional attention.

Repair/Replacement Costs:

  • Transmission Fluid Change – Prices can range from $80 to $250 based on vehicle specifics.
  • Transmission Cooler Cleaning – Cleaning services typically charge between $50 and $100.
  • Cooler Line Replacement – Depending on the make and model, parts and labor combined can range from $200 to $600.
  • Transmission Overhaul or Replacement – If overheating has caused internal damage, costs can vary widely but might range from $1,500 to $4,500 or more.

Transmission overheating can spell disaster if not promptly addressed. Regular maintenance, understanding the demands placed on the vehicle (like towing), and being aware of any unusual signs can help drivers prevent catastrophic failures. If there’s any suspicion of overheating, it’s wise to let the transmission cool down and seek professional advice.

Transmission Light, Failure Causes #6: Computer And Electronics

Like any other part of a modern car, the transmission contains a control module that obtains its information from other sensors.  It communicates with other modules over a data network.

Data network, module, and sensor issues may cause various problems that would turn on the transmission light. Other problems as well, such as a faulty shift solenoid and damaged wiring can possibly turn on the transmission light.

Symptoms of Computer and Electronics Issues:

  • Unpredictable Shifting – The transmission may shift at unexpected times or refuse to shift altogether.
  • Delayed or Harsh Shifts – Experiencing a delay when changing gears or unusually hard shifts.
  • Failure to Start or Stalling – Issues with the control module or sensor may prevent the car from starting or cause it to stall unexpectedly.
  • “Limp Mode” Activation – The vehicle goes into a protective mode with limited gear access.
  • Error Messages on Dashboard – Warning messages or icons related to transmission, sensors, or electronics.

Causes and Reasons for Computer and Electronics Failures:

  • Damaged Wiring – Wires that are frayed, corroded, or broken can disrupt communication.
  • Faulty Control Module – A malfunctioning transmission control module (TCM) can cause improper gear shifts or other related issues.
  • Sensor Failures – If a sensor provides inaccurate information, the TCM may make erroneous decisions.
  • Corroded Connections – Corrosion at connection points can lead to data transmission failures.
  • Software Glitches – Outdated or corrupted software can cause communication issues.

Diagnosis and Troubleshooting:

  • OBD Diagnostic Scan – A scan tool can identify specific error codes related to electronics, such as P0700 (Transmission Control System Malfunction) or P0753 (Shift Solenoid “A” Electrical).
  • Visual Inspection – Check for visibly damaged or corroded wires and connections.
  • Module Communication Check – Use specialized diagnostic equipment to test communication between modules.
  • Sensor Testing – Sensors can be tested for proper function using multimeters or scan tools.

DIY Repairs/Fixes:

  • Wiring Repair or Replacement – Damaged wires can sometimes be repaired or replaced.
  • Connection Cleaning – Clean corroded connections using appropriate solvents.
  • Shift Solenoid Replacement – DIY-friendly individuals can consider replacing a faulty shift solenoid.
  • Software Update – Some vehicle manufacturers might offer updates to address software glitches.
  • Note: Some electronic problems, especially those involving module communication or software, may need specialist attention.

Repair/Replacement Costs:

  • Wiring Repair – Depending on the location and extent of damage, costs can range from $100 to $400.
  • Shift Solenoid Replacement – Parts and labor combined can vary between $150 and $500.
  • Control Module Replacement – A new TCM and its installation might cost anywhere from $500 to $1,500.
  • Sensor Replacement – Depending on the specific sensor, expect to pay between $100 and $400.

In the age of connected cars, electronics play a pivotal role in ensuring smooth operation. When the computerized components linked with the transmission malfunction, it can lead to a cascade of issues. Addressing these problems promptly and with the right expertise can prevent more severe transmission complications down the road.

Transmission Light, Failure Causes #7: Worn Out Clutch (For Manual Transmissions)

For cars with manual transmissions, a worn-out clutch can cause the transmission light to activate. As the clutch becomes more worn, it may start slipping, which can lead to increased wear and tear on the transmission. It’s vital to address this promptly to prevent further damage.

Symptoms of a Worn-Out Clutch:

  • Difficulty in Shifting – Challenges when trying to shift gears, especially without grinding.
  • Clutch Slipping – Engine RPMs rise without a corresponding increase in vehicle speed.
  • Sticking Clutch – The clutch pedal stays on the floor after being depressed.
  • Unusual Noises – Grinding or squeaking sounds when the clutch pedal is pressed or released.
  • Reduced Acceleration – Despite pressing the gas pedal, the car doesn’t accelerate as it should.

Causes and Reasons for a Worn-Out Clutch:

  • Normal Wear and Tear – Clutches naturally degrade over time and with use.
  • Aggressive Driving Habits – Frequently “riding” the clutch or aggressive starts wear out the clutch faster.
  • Incorrect Adjustments – Improper clutch adjustments can lead to premature wear.
  • Contaminated Clutch – Oil or grease on the clutch can cause it to slip.
  • Faulty or Failing Clutch Components – Issues with the pressure plate, throw-out bearing, or clutch cable.

Diagnosis and Troubleshooting:

  • Visual Inspection – By accessing the clutch assembly, signs of wear or contamination can often be seen.
  • Engagement Test – Gradually releasing the clutch in first gear to see if the car stalls can indicate clutch health.
  • Noise Identification – Pinpointing the source and nature of any unusual noises associated with clutch operation.

DIY Repairs/Fixes:

  • Adjusting the Clutch – Ensuring that the clutch pedal free play is within the manufacturer’s specifications.
  • Clutch Bleeding – If the clutch feels spongy, bleeding the clutch system might resolve the issue.
  • Replacing the Clutch Kit – For those comfortable with advanced DIY tasks, clutch kit replacement is an option.
  • Note: If unsure about the severity of clutch wear or the specific cause, consulting a mechanic is wise.

Repair/Replacement Costs:

  • Clutch Adjustment – This might cost between $50 and $120.
  • Clutch Bleeding – Typical costs can range from $75 to $200.
  • Clutch Kit Replacement – Depending on the vehicle model and labor costs, this can vary between $500 and $2,500.
  • Other Component Repairs – Replacing a throw-out bearing, clutch cable, or pressure plate can add between $100 and $500.

The clutch is integral to the operation of manual transmissions, acting as the intermediary between the engine and transmission. Addressing signs of wear early can stave off more substantial, costly repairs. Ensuring a clutch is in an optimal working condition not only guarantees smoother rides but can also save the transmission from undue stress.

Transmission Light, Failure Causes #8: Damaged Transmission Bands

Transmission bands link the gears in an automatic transmission. Over time, these bands can become worn out or broken. If these bands aren’t functioning correctly, the gears can’t engage as they should. This malfunction can lead to an illuminated transmission warning light.

Symptoms of Damaged Transmission Bands:

  • Delayed or Harsh Shifting – Difficulties when changing gears or noticeable jolts during shifting.
  • Slipping Gears – The transmission unexpectedly changes gears without driver input.
  • Transmission Noises – Sounds like grinding or whining might emanate from the transmission.
  • Unable to Change Gears – Certain gears might not engage at all.
  • Transmission Fluid Leaks – Worn or damaged bands can cause the transmission to overheat, leading to fluid leaks.

Causes and Reasons for Damaged Transmission Bands:

  • Normal Wear and Tear – Continuous use will naturally degrade the bands over time.
  • Low or Poor-Quality Transmission Fluid – Inadequate lubrication can cause bands to wear out more rapidly.
  • Misaligned Transmission Components – If internal components aren’t aligned correctly, it places added strain on the bands.
  • Aggressive Driving Habits – Hard accelerations or not allowing the transmission to warm up can lead to premature wear.

Diagnosis and Troubleshooting:

  • Visual Inspection – Once the transmission pan is removed, worn or broken bands can often be seen directly.
  • Transmission Fluid Check – Discolored or burnt-smelling fluid can hint at band issues.
  • Engagement Test – Monitoring the transmission’s performance while shifting through all gears.
  • OBD Diagnostic Scan – Scanning for any transmission-related error codes.

DIY Repairs/Fixes:

  • Adjusting Transmission Bands – Some bands allow for adjustments to be made, potentially prolonging their lifespan.
  • Replace Transmission Fluid and Filter – Ensuring bands are properly lubricated might reduce further damage.
  • Transmission Band Replacement – For mechanically inclined individuals, replacing bands might be feasible.
  • Note: Transmission work can be intricate; if unsure about the diagnosis or repair process, seeking professional help is recommended.

Repair/Replacement Costs:

  • Band Adjustment – Depending on the model and mechanic rates, expect costs between $150 and $250.
  • Transmission Fluid and Filter Change – Typically range from $80 to $250.
  • Transmission Band Replacement – With labor and parts, the total cost can range from $500 to $1,500, depending on the vehicle’s make and model.
  • Complete Transmission Overhaul – If multiple components are damaged, a complete overhaul might be needed, costing anywhere from $1,800 to $3,500.

Transmission bands play a pivotal role in the proper functioning of an automatic transmission, ensuring that gears are selected and held effectively. Proper maintenance and timely attention to potential issues can keep these bands — and the broader transmission — in optimal working condition.

Ignoring warning signs can lead to more extensive transmission damage, so it’s paramount to act swiftly when issues arise.

Transmission Light, Failure Causes #9: Malfunctioning Sensors

Modern transmissions rely on sensors to gauge and control operations, including vehicle speed sensors, throttle position sensors, and turbine speed sensors. When these sensors malfunction, they send incorrect data to the transmission control module, leading to erratic shifts or performance issues, triggering the transmission light.

Symptoms of Malfunctioning Sensors:

  • Erratic Shifting – The transmission may unexpectedly upshift or downshift without clear reasons.
  • Delayed Gear Engagement – A lag may occur when shifting into drive or reverse.
  • Harsh or Jerky Shifts – Changes between gears might feel abrupt or more forceful than usual.
  • Poor Acceleration – The vehicle struggles to gain speed, even with increased throttle input.
  • Transmission in “Limp Mode” – The car remains stuck in one gear to minimize potential damage.

Causes and Reasons for Malfunctioning Sensors:

  • Normal Wear and Tear – Sensors, like other components, degrade with time and usage.
  • Contaminants – Dirt or debris can interfere with the sensor’s functioning.
  • Electrical Issues – Corroded connectors, frayed wires, or other electrical issues can disrupt sensor signals.
  • Extreme Temperature Fluctuations – Extreme cold or heat can affect sensor performance.
  • Physical Damage – Accidents or external impacts can damage or misalign sensors.

Diagnosis and Troubleshooting:

  • OBD Diagnostic Scan – A scan can highlight specific error codes related to transmission sensors.
  • Visual Inspection – Check for visible damage, loose connections, or contamination on the sensors.
  • Test Sensor Values – Using specialized tools, technicians can measure if sensors are providing accurate readings.
  • Check Wiring and Connections – Ensure that the wiring associated with the sensors is intact and free of corrosion.

DIY Repairs/Fixes:

  • Cleaning Sensors – Gentle cleaning can sometimes remove dirt or contaminants affecting sensor readings.
  • Sensor Replacement – If a specific sensor is determined to be faulty, it can be replaced. Ensure you use the right sensor type for your vehicle.
  • Wiring Repair – If frayed or damaged wires are found, they can be repaired or replaced.
  • Note: Always ensure the vehicle is off and keys are removed from the ignition when working on electrical components.

Repair/Replacement Costs:

  • Diagnostic Test – Fees for a transmission diagnostic test typically range from $100 to $150.
  • Sensor Replacement – Depending on the type and model, sensors can cost between $20 and $200 for parts. With labor, the total might range from $100 to $500.
  • Wiring Repair – Repairing or replacing wiring or connectors can cost between $100 and $400, based on the extent of the damage and labor rates.
  • Complete Electrical Overhaul – In rare cases, multiple electrical issues may necessitate a more extensive repair, costing between $500 and $1,200.

Transmission sensors are the eyes and ears of modern transmission systems, informing the control module about various operating conditions. As such, their health and accuracy are crucial. Recognizing the signs of malfunctioning sensors and addressing them promptly ensures the vehicle performs optimally and maintains safety on the road.

Transmission Light, Failure Causes #10: Transmission Fluid Leaks

Beyond low fluid levels, the actual presence of leaks can be a concern. Leaks usually occur in the seals or gaskets. Not only can these leaks cause low fluid levels, but they can also allow contaminants to enter, leading to potential transmission damage.

Symptoms of Transmission Fluid Leaks:

  • Puddles or Spots Under the Car – Typically red or brown in color, suggesting transmission fluid.
  • Transmission Slipping – Inadequate fluid makes the transmission slip or change gears unpredictably.
  • Delayed Gear Engagement – A hesitation when shifting into drive or reverse.
  • Whining or Clunking Noises – Sounds often emanate from the transmission, especially during gear shifts.
  • Overheating Transmission – Fluid acts as a coolant; low levels can cause excessive heat.

Causes and Reasons for Transmission Fluid Leaks:

  • Worn Out or Damaged Seals/Gaskets – Over time, these components can deteriorate or become misaligned.
  • Faulty Transmission Pan – Pans can get punctured or corroded, leading to leaks.
  • Damaged Fluid Lines – Impacts or wear can cause breaks or holes in transmission fluid lines.
  • Overfilled Transmission – Excessive fluid can lead to increased pressure, causing leaks.
  • Normal Wear and Tear – Simply due to age, various components can start to wear down.

Diagnosis and Troubleshooting:

  • Visual Inspection – Check underneath the car for any visible drips or fluid accumulation.
  • Fluid Level and Quality Check – Examine the transmission fluid for its level and any signs of contaminants.
  • Pressure Test – A test to check the transmission’s pressure can pinpoint leaks.
  • OBD Diagnostic Scan – While primarily for electronic issues, some scans might indicate problems linked to low fluid conditions.

DIY Repairs/Fixes:

  • Re-sealing Transmission Pan – Changing the gasket and properly sealing the transmission pan can prevent leaks.
  • Replacing Damaged Lines – Swapping out any damaged or old fluid lines can stop leaks.
  • Fluid Top-Up – Ensuring the fluid is at the recommended level, but be cautious to not overfill.
  • Sealants – In some cases, transmission-specific sealants can be used for temporary relief from minor leaks.
  • Note: Persistent or significant leaks should be professionally addressed to prevent further damage.

Repair/Replacement Costs:

  • Diagnostic Test – Diagnosing the exact leak source might cost between $50 and $150.
  • Seal or Gasket Replacement – Depending on the vehicle model, costs can range from $150 to $1,000. This includes both parts and labor.
  • Fluid Line Replacement – Replacing damaged lines usually costs between $100 and $400.
  • Fluid Top-Up or Change – Refreshing or topping up the transmission fluid might run from $75 to $250.
  • Transmission Overhaul or Replacement – If leaks have led to significant damage, a full overhaul or replacement could cost anywhere from $1,800 to $3,400, encompassing parts and labor.

Transmission fluid acts as both a lubricant and coolant for the intricate components inside the transmission system. Its consistent level and purity are crucial to ensuring the transmission’s proper function and longevity. While minor leaks can seem insignificant initially, they can rapidly escalate into major issues if not addressed promptly.

Regularly monitoring the space under your vehicle for any signs of fluid or performing periodic checks on the fluid itself can act as early warning measures. When confronted with a leak, timely intervention – either DIY or professional – can often save costly repairs in the long run.

Remember, a well-maintained transmission not only ensures a smoother drive but also significantly extends the lifespan of your vehicle.

Transmission Light, Failure Causes #11: Clogged Transmission Filter

The transmission filter helps to keep the transmission fluid free of contaminants. If this filter becomes clogged, the transmission might not get the necessary amount of fluid, leading to potential performance problems or damage. A dirty filter might also cause the transmission to overheat, bringing us back to cause #5.

Symptoms of a Clogged Transmission Filter:

  • Delayed Gear Engagement – The vehicle may hesitate or delay when shifting.
  • Noisy Transmission – Whining, grinding, or clunking sounds when the vehicle is in gear.
  • Erratic Shifting – Unpredictable or hard shifts between gears.
  • Transmission Overheating – Insufficient fluid flow can cause the transmission to run hot.
  • Slipping Transmission – Due to reduced fluid pressure, the transmission might slip out of gear.

Causes and Reasons for a Clogged Transmission Filter:

  • Normal Wear and Tear – Over time, small metal or clutch particles can accumulate in the filter.
  • Dirty or Contaminated Transmission Fluid – This can hasten filter blockage.
  • Extended Service Intervals – Delaying regular maintenance and fluid changes can lead to a clogged filter.
  • Internal Transmission Damage – Breakdown of internal components can release debris.

Diagnosis and Troubleshooting:

  • Fluid Inspection – Dark or dirty fluid can be an indication of a clogged filter.
  • Transmission Pressure Test – A reduced pressure reading might suggest a clog.
  • Visual Inspection – By dropping the transmission pan, the filter can be visually checked for clogs.
  • OBD Diagnostic Scan – Certain vehicles might register a code if the filter restricts fluid flow.

DIY Repairs/Fixes:

  • Replace Transmission Filter – Regularly replacing the transmission filter can prevent clogs. This often involves dropping the transmission pan.
  • Change Transmission Fluid – Alongside filter replacement, changing the fluid ensures contaminants are removed.
  • Transmission Fluid Flush – A more comprehensive method, flushing can help clear out any lingering contaminants.
  • Note: Always use the manufacturer-recommended transmission fluid and filter for your vehicle.

Repair/Replacement Costs:

  • Diagnostic Test – Pinpointing a clogged filter might cost between $50 and $150.
  • Transmission Filter Replacement – Depending on the vehicle, costs range from $100 to $400, including parts and labor.
  • Transmission Fluid Change – This typically costs between $75 and $250.
  • Full Fluid Flush – More expensive than a simple change, a flush can run from $150 to $400.
  • Potential Transmission Repairs – If a clogged filter led to other damages, repair costs can escalate.

Maintaining a clean transmission filter is paramount for the health of your transmission. Just as our lungs need clean air to function optimally, a transmission requires clean fluid. Regular checks and timely replacements can save vehicle owners from more costly repairs down the line.

Ensure you stick to your vehicle’s maintenance schedule and always be attentive to any signs of transmission troubles.

Transmission Light, Failure Causes #12: Worn Out Gear Synchros (For Manual Transmissions)

In manual transmissions, gear synchros help the gears to move smoothly without grinding. As these synchros wear out, gear shifts can become more jarring or harder to engage, potentially causing the transmission light to come on.

Symptoms of Worn-Out Gear Synchros:

  • Difficult Gear Shifting – Resistance or difficulty when trying to shift into a particular gear.
  • Grinding Noise – Distinctive grinding sound during gear changes, especially when not rev-matching.
  • Involuntary Gear Popping – The transmission might pop out of gear unexpectedly.
  • Delayed Engagement – There’s a noticeable delay before the gear engages after shifting.

Causes and Reasons for Worn-Out Gear Synchros:

  • Excessive Force During Shifting – Regularly using too much force can wear synchros prematurely.
  • Frequent High RPM Shifting – Consistently shifting at high RPMs increases wear and tear.
  • Age and Usage – Like all mechanical parts, synchros have a lifespan and can wear out over time.
  • Insufficient Lubrication – Using the wrong type of transmission fluid or low fluid levels can expedite synchro wear.

Diagnosis and Troubleshooting:

  • Physical Inspection – By opening up the transmission, worn synchros can sometimes be visually identified.
  • Listen for Sounds – Grinding during gear changes is a classic sign.
  • Feel the Shift – If shifting feels more resistant or if there are delays in gear engagement, it can indicate synchro issues.
  • No OBD Codes – Manual transmission synchro issues usually don’t produce specific OBD diagnostic error codes.

DIY Repairs/Fixes:

  • Transmission Fluid Change – Ensuring you have the right transmission fluid and that it’s at the proper level can help.
  • Synchro Replacement – This is an advanced DIY project, and while possible, it requires a deep understanding of transmission mechanics.
  • Rev-matching Technique – Learning to match engine RPM with the target gear can reduce synchro wear.

Repair/Replacement Costs:

  • Diagnostic Test – A mechanic’s assessment might range from $50 to $150.
  • Gear Synchro Replacement – Depending on the vehicle and labor rates, you might expect to pay between $500 to $1,500 for parts and labor. Remember, accessing the synchros requires dismantling the transmission.
  • Transmission Fluid Change – Generally costs between $75 and $250.

It’s crucial for drivers to understand the importance of gear synchros in manual transmissions. These small components play a huge role in ensuring smooth gear changes and protecting the transmission’s longevity.

Attending to them early can prevent more extensive transmission damage and provide a smoother driving experience. Always consult a professional if you suspect synchro-related issues. Regular maintenance, along with good driving habits, can prolong the life of these components.

Transmission Light, Failure Causes #13: Inadequate Transmission Software Updates

Automotive technology, especially in transmissions, keeps evolving. Sometimes, car manufacturers release software updates to enhance the performance of the transmission. If your car hasn’t received these updates, it might not operate optimally, which might trigger the warning light.

Symptoms of Inadequate Transmission Software Updates:

  • Erratic Shifting – The vehicle may shift unexpectedly or at unusual times.
  • Delayed Gear Engagement – A delay may be felt when the car is shifting from one gear to another.
  • Poor Fuel Efficiency – The transmission may not shift optimally, causing increased fuel consumption.
  • Jerkiness or Harshness – Sudden jolts or unsmooth transitions between gears.

Causes and Reasons for Inadequate Software Updates:

  • Manufacturer Oversight – Sometimes updates are released but not communicated effectively to all owners.
  • Ignored Recalls or Service Bulletins – Vehicle owners might be unaware or may ignore crucial updates.
  • Aftermarket Tuning – Some software modifications or aftermarket tunes might conflict with OEM software.
  • Older Model Vehicles – Older cars may not have received the latest software revisions if they were not taken in for regular servicing.

Diagnosis and Troubleshooting:

  • Diagnostic Scanning – A specialized scanner can reveal the software version and if updates are available.
  • Check Manufacturer’s Website – Some manufacturers list software updates or recalls online.
  • Consult Dealership – Dealerships have access to the latest software revisions and can advise if updates are needed.
  • OBD Diagnostic Error Codes – While not specific to software, some transmission-related codes might hint at software inadequacies.

DIY Repairs/Fixes:

  • Visit Authorized Dealer – Most software updates need proprietary tools and should be done at authorized dealers or service centers.
  • Avoid Third-party Software Updates – Stick to manufacturer-approved updates to ensure compatibility.
  • Regular Maintenance – Always adhere to regular servicing to stay informed about potential updates.

Repair/Replacement Costs:

  • Diagnostic Fee – Checking the software version may cost anywhere from $50 to $150.
  • Software Update – Some manufacturers might offer it for free, especially if it’s a critical update. However, if it’s done as part of a broader service, expect costs ranging from $100 to $500, depending on the dealership and region.
  • Potential Additional Costs – If the outdated software has led to other transmission issues, there could be additional repair costs involved.

Staying updated with transmission software is pivotal in modern vehicles. The intricacies of current transmissions require them to be in sync with the vehicle’s software platform. Regular maintenance and check-ups, particularly with the dealership, can ensure your vehicle operates at its peak and minimizes unexpected issues or wear.

Transmission Light, Failure Causes #14: Bad Valve Body

The valve body acts as the main control center in automatic transmissions, directing fluid to various valves to ensure it shifts correctly. If the valve body is faulty or fails, it can lead to a myriad of transmission problems, including the activation of the transmission warning light.

Symptoms of a Bad Valve Body:

  • Delayed or Erratic Shifting – Shifts might not occur promptly or can happen unexpectedly.
  • Transmission Slipping – The transmission might have trouble staying in the selected gear.
  • Unusual Noises – Whining, buzzing, or humming sounds originating from the transmission area.
  • Overheating Transmission – Faulty valve bodies can restrict fluid flow, leading to overheating.

Causes and Reasons for a Bad Valve Body:

  • Wear and Tear – Over time, the channels in the valve body can wear out, affecting its functionality.
  • Dirty Transmission Fluid – Contaminated fluid can cause blockages or damage to the valve body.
  • Manufacturing Defects – Less common, but some valve bodies may have defects from the factory.
  • External Damage – In extreme situations, accidents or foreign object damages can impact the valve body.

Diagnosis and Troubleshooting:

  • Transmission Fluid Inspection – Discolored or contaminated fluid can indicate issues.
  • OBD Diagnostic Error Codes – Scanners may reveal codes associated with the valve body or solenoid problems.
  • Professional Inspection – A mechanic can manually inspect the valve body for any visible damages or blockages.

DIY Repairs/Fixes:

  • Fluid Change – Changing and maintaining clean transmission fluid can prevent and sometimes alleviate minor valve body issues.
  • Cleaning the Valve Body – In some cases, removing and cleaning the valve body can restore functionality. However, this is a complex task and might not be suitable for all DIY enthusiasts.
  • Replacement – If cleaning doesn’t help or if the damage is too extensive, replacing the valve body is the next step.

Repair/Replacement Costs:

  • Diagnostic Fee – Professional diagnosis can range from $50 to $150.
  • Valve Body Replacement – Depending on the make and model, a new valve body can cost between $200 to $1000. Labor might add an additional $500 to $1000 to the bill.
  • Fluid Change – If you’re changing or cleaning the valve body, it’s a good time for a fluid change, adding around $50 to $150.

Maintaining your car’s transmission and ensuring it has clean, fresh fluid can significantly extend the life of components like the valve body. If you experience any transmission-related symptoms, it’s essential to address them quickly. Prolonged issues can lead to more extensive damages and costlier repairs.

Transmission Light, Failure Causes #15: Failed Transmission Pump

The transmission pump plays a crucial role in ensuring the fluid circulates throughout the system. If this pump fails, the transmission won’t get the fluid it requires to operate. This lack of circulation can lead to overheating and potential damage, causing the warning light to illuminate.

Symptoms of a Failed Transmission Pump:

  • Delayed Engagement – When shifting from park to drive or reverse, there’s a noticeable delay before the car moves.
  • Noisy Transmission – Hearing a whining sound, especially during the initial start-up or when changing gears.
  • Poor Shift Quality – The transitions between gears can become rough or jarring.
  • Transmission Overheating – Due to inadequate fluid circulation, the transmission might overheat.

Causes and Reasons for a Failed Transmission Pump:

  • Wear and Tear – Like any other component, the transmission pump can wear out over time.
  • Low Transmission Fluid – Running on a low fluid level can lead to the pump drawing in air, causing damage.
  • Contaminated Fluid – Debris and contaminants in the fluid can clog or damage the pump.
  • Defective Installation – If a pump is not installed correctly during a repair or replacement, it can fail prematurely.

Diagnosis and Troubleshooting:

  • Noise Diagnosis – Listen for unusual noises when the car starts or during shifts. A failing pump often produces a distinct whining sound.
  • Fluid Level and Quality – Check the transmission fluid level and its condition. If it’s low or dirty, it could be a sign.
  • OBD Diagnostic Error Codes – Use a scanner to look for specific error codes related to the transmission pump.
  • Pressure Test – A mechanic can perform a transmission fluid pressure test to ascertain the pump’s performance.

DIY Repairs/Fixes:

  • Fluid Change – Changing the transmission fluid can sometimes alleviate issues if contaminants are the cause.
  • Pump Replacement – This is a more complex task. If you’re not familiar with transmission work, it’s best to leave this to professionals. However, skilled DIYers might tackle this with a repair manual in hand.

Repair/Replacement Costs:

  • Diagnostic Fee – Expect to pay between $50 to $150 for a professional diagnosis.
  • Transmission Pump Replacement – The cost for a new pump ranges from $150 to $500, depending on the model. Including labor, the total might be between $500 to $1500.
  • Fluid Change – If you’re replacing the pump, consider changing the fluid as well, adding $50 to $150 to the total.

Regularly checking your transmission fluid level and ensuring its quality is key to prolonging the life of components like the transmission pump. If you ever suspect an issue, seeking professional advice early can prevent more extensive damage and higher repair costs.

In summary, the transmission warning light is an essential indicator of potential problems within the transmission system. It’s vital to address the issue immediately when the light comes on to prevent further complications. Ensure you consult with a professional mechanic for a comprehensive diagnosis and solution.

Transmission Light Came On While Driving

If your car’s transmission light appeared to warn you of a possible problem with your transmission temperature associated with low fluid levels, driving in this state isn’t a good idea. Even though you can continue driving like this for a while, it’s important to note that the longer you continue driving with the transmission light on, the worse the problem gets.

Perhaps the temperature will continue rising as you continue to either run contaminated fluid or leak fluid in your transmission, which will eventually damage the transmission. The transmission is one of the most expensive car parts to replace, and it can occasionally be rescued if you act promptly and get the necessary repairs done.

If your transmission light illuminates, the best thing to do is to stop driving immediately. After doing so, find a secure place to stop the vehicle and let it rest until the transmission cools down. Afterward, you may attempt to start the car and continue driving. However, make sure to drive carefully at this point.

Your main aim should be to get the car to a mechanic and nothing more. If the light shows up again, stop again and allow it to cool once more. And if you’re miles away from a mechanic or the nearest town, you may need to request a tow at this juncture.

Transmission Maintenance & Service

Depending on the type of vehicle and age, transmission repairs can be costly. Sometimes it’s inevitable to evade having a transmission specialist service your car, especially when you’re subjected to a total breakdown.

However, there are measures you can take to avoid transmission failure and ensure a long, efficient life for your vehicle. Here’s a checklist of the top maintenance tips for your transmission.

Transmission Light, Preventive Maintenance #1: Check Your Transmission Fluid Regularly

In cars like light trucks and SUVs, the transmission fluid ought to be checked regularly together with the oil. A decrease in the transmission fluid can result from leakage. In that case, refilling it will be the best choice to prevent damage to your transmission.

Check the fluid level once again after 4 days. If the level is back low again, drive to the nearest auto repair center for repair since something is definitely wrong with your transmission at this point. Usually, the fluid is bright red with a nice smell. If you find it dark in color with a rotten smell to it, just know that a whole fluid replacement could be the ultimate solution.

Transmission Light, Preventive Maintenance #2: Service Your Cooling System Regularly

Your car’s cooling system plays a significant role in the health of your engine and transmission. And more often, people think it only prevents the engine from getting too hot.

However, the car cooling system also helps cool your vehicle’s transmission fluid to ensure it’s at an ideal temperature when it’s still or shifting through gears. To ensure your transmission and engine don’t overheat, it’s prudent to get your cooling system serviced regularly.

Transmission Light, Preventive Maintenance #3: Use The Right Transmission Fluid

Most car owners cause havoc to their vehicles because they’ve replaced their transmission fluid with an improper fluid.

Always consult your owner’s manual for the correct information regarding the suitable transmission fluid for your car. If your car uses an incompatible kind of fluid, make sure to have the transmission fluid flushed and have it replaced with the right kind.

Transmission Light

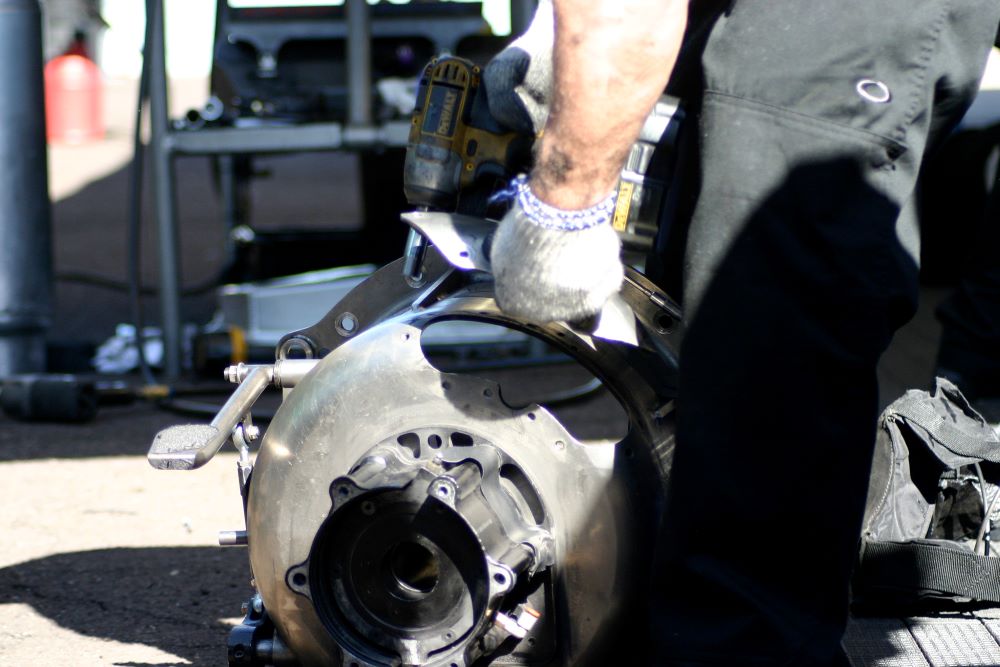

Transmission re-build, Courtney Force’s TRAXXAS funny car” by Stephen Mellentine is licensed under CC BY-NC-ND 2.0 .

Transmission Light, Preventive Maintenance #4: Flush The Transmission Regularly

According to experts, changing of transmission fluid should be carried out every once a year. However, always make sure to consult your owner’s manual before making any assumptions. How long your vehicle’s transmission fluid will last depends on how often you drive it as well as its operating temperature.

A professional fluid exchange or transmission flush helps to ensure that no old fluid remains in your oil cooler lines or the torque converter. Besides, it’s also a great way to do away with any grime or gunk that may be trapped in your transmission.

The process entails specialized equipment so as to entirely remove the old fluid and replace it with new, fresh fluid. Understand that draining the transmission pan alone will only change about 40% of your transmission fluid.

Transmission Light, Preventive Maintenance #5: Avoid Or Minimize Towing

Hauling hefty loads with a car that wasn’t meant to tow puts extreme pressure on your vehicle. Suppose you choose to act as the stand-in for a tow truck, especially during harsh weather conditions.

In that case, your transmission fluid may overheat and lose its lubricating properties, hence damaging the transmission. If necessary, rent a car or leave the towing to the experts.

Transmission Light, Preventive Maintenance #6: Warm Up Your Car Before Driving

In as much as you’re eager to reach your destination as quickly, it’s always important to be patient before driving.

Commencing your journey before taking a minute or so for your car to warm up puts undue pressure on your car’s transmission and engine. Waiting for a short while before steering out of your driveway will help warm up the fluid and make sure everything is lubricated and working as required.

Transmission Light, Preventive Maintenance #7: Don’t Overuse Your Spare Tire

A spare tire is extremely helpful, but if overused, it puts unnecessary strain on your transmission, resulting in its damage.  Besides, small or mismatched tire sizes also damage other parts of your car, such as the wheel alignment.

Transmission Light, Preventive Maintenance #8: Don’t Shift Gears While The Vehicle Is Moving

One of the most effective and easiest ways to care for your transmission is to make sure that you always bring your car to a halt before you switch from reverse to drive or before shifting into park. Failure to do so will put excessive strain on your vehicle’s transmission and thus damaging it in the long run.

While these tips will help you take good care of your vehicle’s transmission, it’s still advisable that you hang on to a professional mechanic or repair shop on matters of repair, maintenance, and other types of servicing of your transmission.

Transmission Light Facts

  1. A lit transmission warning light is an indication of car trouble, especially if there is a low fluid level or gearbox issues.
  2. The appearance of the transmission warning light may vary, with a gearwheel encircling a thermometer or an exclamation point being common.
  3. Transmission overheating is the most common reason for a transmission light to come on, caused by low fluid, a blocked cooler, or an internal transmission issue.
  4. A low transmission fluid level can lead to problems with the transmission, and a low automatic transmission fluid level can indicate a transmission fluid leak.
  5. An internal transmission failure can cause the powertrain control module to read it as a transmission failure and turn on the transmission warning light.
  6. The valve body, which controls all sensors and electronics in a transmission system, can cause transmission light problems if there are any issues.
  7. A lit transmission warning light can also be a reminder to check fluid levels or replace bad transmission fluid, as regular maintenance is crucial.
  8. Continuing to drive with a lit transmission warning light is not advisable, as the issues can be severe and lead to further damage.
  9. Diagnosing the issue of the transmission warning light can be done by stopping driving, scanning for trouble codes, or consulting a professional mechanic.

Transmission Light: In Conclusion…

When your transmission begins to fail, it doesn’t give you plenty of time to react. But if the transmission light shows up, that’s a red flag. This isn’t the type of thing you can brush aside and worry about it some other time. If it’s a problem right now, you’ll have to deal with it immediately.

The longer you let it transpire, the more likely you are to suffer a more severe and costly failure of your transmission system. You never want to head on that road and end up with huge repair bills and lots of headaches. When your transmission light appears, head on to a mechanic and get the problem diagnosed and repaired.

Transmission Light: Frequently Asked Questions (FAQs)

Here are some popular frequently asked questions (and their answers) about the transmission light…

What Does Check Engine Light Mean

The check engine light is a warning system in a car’s dashboard that alerts drivers to potential engine issues. It can be triggered by a variety of problems, ranging from minor issues like a loose gas cap to more serious ones like a malfunctioning oxygen sensor. When this light comes on, it’s a sign that something is not right with the engine or its related systems. It’s recommended that you seek a professional diagnosis soon to prevent potential damage or more costly repairs down the road.

What Does Check Gauges Mean

The check gauges light indicates that one or more of your car’s gauges are displaying readings outside of their normal range. This could pertain to the oil pressure, battery voltage, coolant temperature, or fuel levels. Whenever this light comes on, it’s important to quickly glance at all the gauges to identify which one is displaying an abnormal reading and address the issue accordingly.

What Does the Oil Light Mean

The oil light is a crucial warning indicator that typically signifies low oil pressure in your engine. Low oil pressure can be due to low oil levels, a failing oil pump, or blockages in the system. It’s essential to address this immediately, as driving with low oil pressure can lead to significant engine damage. If this light illuminates, pull over safely and turn off the engine. Check the oil level and consult a mechanic if necessary.

Why Did My Traction Control and Check Engine Light Come On

Both the traction control and check engine light coming on simultaneously can indicate a shared issue affecting the two systems. Some common reasons include faulty wheel sensors, issues with the throttle body, or problems with the car’s computer. When these lights come on together, it’s a sign that the vehicle’s stability and engine performance might be compromised. It’s recommended to have the car inspected by a professional to determine the cause.

What Must You Do When the Temperature Light on Your Dashboard Comes On

When the temperature light illuminates, it indicates that your engine is overheating. This can be due to low coolant levels, a malfunctioning thermostat, or a compromised water pump, among other reasons. If you see this light, it’s crucial to pull over safely, shut off the engine, and let it cool down. Afterward, check the coolant level and seek professional help if needed.

How Do You Know Your Transmission Is Going Out

Signs that your transmission is going out include rough or delayed shifting, slipping between gears, unusual noises like grinding or clunking, and fluid leaks. If you notice any of these signs, it’s important to seek a mechanic’s expertise. Ignoring these symptoms can lead to more severe problems and potentially costly repairs.

How to Check Fuel Pump

To check the fuel pump, listen for its operation when you turn the ignition to the ‘on’ position before starting the engine. You should hear a brief humming sound. Additionally, if your car struggles to start or loses power while driving, it could be a sign of a failing fuel pump. For a more detailed inspection, a fuel pressure test can be performed by a professional.

What Is the Transmission of a Car

The transmission of a car is a system that helps transfer power from the engine to the drive wheels. It adjusts the power delivered according to speed, load, and conditions, ensuring optimal performance and fuel efficiency. Transmissions can be manual, where drivers change gears using a clutch, or automatic, where the car handles gear changes on its own.

What Happens If Transmission Goes Out While Driving

If the transmission goes out while driving, the car might lose power, refuse to shift, or behave erratically. You may also hear grinding or clunking sounds. If this happens, reduce speed gradually, try to get to a safe location, and turn off the engine. Driving further with a failed transmission can cause more damage.

What Does the Oil Light Look Like

The oil light usually appears as an oil can or a similar symbol, sometimes combined with a drip. It’s typically red or amber and is found on the car’s dashboard. When you see this light, it’s an urgent sign to check the engine’s oil level or pressure and address the issue.

What Does a Transmission Look Like

A transmission is a large metal component located beneath your car, typically bolted to the engine’s rear. In its most basic form, it looks like a big metal box with various connectors, bolts, and input/output shafts. Depending on the type of car – manual or automatic – the transmission might have slight variations in appearance, but it generally has a robust and intricate design due to the complex gear systems inside.

What Happens When Your Transmission Goes Out

When your transmission goes out, your car may lose the ability to shift gears or move forward or backward. You might experience slipping between gears, unusual noises, or the car might not move at all even when the engine is running. The car’s overall performance and fuel efficiency will be compromised, and continuing to drive can cause further damage.

What Does the Light on the Dashboard Mean

Lights on the dashboard serve as indicators or warnings related to various systems in the car. Each light has a specific symbol representing a different aspect of the vehicle, such as engine health, fluid levels, or safety systems. When a light illuminates, it’s signaling an issue or the operation of a certain function. It’s essential to refer to the car’s manual to understand each light’s specific meaning.

What Does It Mean When the Brake Light Comes On

When the brake light comes on, it can indicate several things. It might mean the parking brake is engaged, there’s a drop in brake fluid level, or there could be a more serious issue with the brake system. If the brake light illuminates while driving, it’s crucial to check your parking brake and brake fluid level. If everything seems in order, consult a mechanic to ensure the braking system is functioning correctly.

How to Fix Transmission

Fixing a transmission often requires professional expertise due to its complexity. If you suspect a problem, start by checking the transmission fluid level and condition. If the fluid is low or dirty, it might need changing. For more severe issues like gear slipping or noises, a mechanic may need to inspect internal components. In some cases, a transmission repair could involve replacing worn-out parts, while in others, a complete transmission replacement might be necessary.

What Is a Dashboard in a Car

The dashboard in a car is the control panel located in front of the driver. It houses various instruments, gauges, and warning lights that provide vital information about the car’s performance and health. This includes the speedometer, fuel gauge, temperature gauge, and various warning and indicator lights. Additionally, the dashboard may also have controls for entertainment, climate, and other vehicle functions.

What Does ABS Light Mean in a Car

The ABS light refers to the Anti-lock Braking System. When this light illuminates, it indicates a problem with the ABS, which prevents wheel lockup during braking, ensuring steering control. While brakes will still function when the ABS light is on, the anti-lock feature might not work, increasing the risk of skidding in sudden stops. It’s advised to consult a mechanic to diagnose and address the issue.

What Does AT Mean on a Car

‘AT’ typically refers to ‘Automatic Transmission.’ If you see an ‘AT’ light or warning on your dashboard, it’s indicating an issue with the automatic transmission system. This could range from a minor sensor issue to a more significant problem requiring immediate attention. Whenever the AT light appears, seeking a professional diagnosis is recommended.

What Does the Car with Squiggly Lines Mean

The symbol of a car with squiggly lines, often found on a car’s dashboard, represents the Traction Control System (TCS). This system helps prevent wheel spin during acceleration by adjusting engine power or applying brake force to specific wheels. If this light comes on and stays on, it suggests an issue with the traction control system. However, the light might also activate temporarily in conditions where traction is lost and then regained.

How to Reset Toyota Maintenance Light

To reset the maintenance light on most Toyota vehicles, follow these steps: 1) Turn off the vehicle. 2) Press and hold the trip reset button (often located near the odometer). 3) While holding the trip reset button, turn the ignition to the ‘on’ position (without starting the car). 4) Continue holding until the maintenance light turns off, usually after a few seconds. 5) Release the button and turn off the ignition. 6) Remember, the exact process might vary based on the Toyota model and year, so it’s always a good idea to consult the owner’s manual.

What Causes Automatic Transmission to Fail

Automatic transmission failure can be caused by several factors. Common reasons include low or poor-quality transmission fluid, overheating, wear and tear of parts due to lack of maintenance, faulty solenoids, and problems with the torque converter. Inconsistent driving habits can also contribute to premature wear. Regular maintenance and using the right type of transmission fluid can help prevent many of these issues.

Why Did My Dashboard Lights Go Out While Driving

Dashboard lights going out while driving can be unsettling and usually points to an electrical issue. It might be due to a blown fuse, a malfunctioning dimmer switch, problems with the wiring, or a failure in the instrument cluster itself. If all the lights go out simultaneously, it’s most likely an electrical issue that should be addressed by a professional mechanic.

Why Is My Check Engine and Trac Off Light On

The check engine light along with the Trac Off light coming on can indicate a problem in the engine management system, which has subsequently disabled the traction control system. Issues might include a faulty oxygen sensor, a loose gas cap, or problems with other engine sensors. As traction control relies on engine management information, any engine-related issues might trigger both lights. A professional diagnosis with proper scanning tools can pinpoint the exact cause.

Why Is the D Light Blinking on My Honda

If the ‘D’ light (Drive light) is blinking on your Honda, it usually signifies a problem within the transmission system. This might include issues with the transmission fluid, electronic components, or mechanical parts. The blinking light is a warning that the system requires immediate attention. Continuing to drive with this warning may lead to further damage, so it’s advisable to consult a mechanic as soon as possible.

What Causes Transmission Problems

Transmission problems can be caused by various factors, including low or contaminated transmission fluid, lack of regular maintenance, overheating, worn or damaged parts, and manufacturing defects. Issues with electronic components and improper driving habits can also contribute. Regular inspections, proper fluid management, and adherence to recommended service intervals can help prevent many common transmission problems.

Which Symbol Warns That There Is Something Wrong With Your Alternator

The warning symbol for a problem with your alternator is usually depicted as a battery icon or as the letters ‘ALT’ or ‘GEN’ on the dashboard. It’s typically illuminated in red or amber. When this light comes on, it can signify an issue with the alternator’s ability to charge the battery, possibly due to a worn alternator belt, faulty alternator, or wiring problems.

What Causes Transmission to Overheat

Transmission overheating can be caused by low or poor-quality transmission fluid, heavy towing or hauling beyond the vehicle’s capacity, aggressive driving, or a clogged transmission fluid cooler. Overheating can cause significant damage to the transmission’s internal components, leading to failure. Ensuring proper fluid levels and regular maintenance can help prevent overheating.

Why Are My Dash Lights Going On and Off

Dash lights going on and off intermittently can be due to a loose connection, faulty switches, problems with the vehicle’s alternator, or a weakening battery. It could also be an issue with the car’s Body Control Module, which manages various interior electrical systems. Identifying the exact cause may require professional diagnostic equipment and expertise.

Does Transmission Fluid Evaporate

Transmission fluid does not typically evaporate like water does. However, over time, it might break down or lose its effectiveness due to heat and wear. If you find that the transmission fluid level is dropping, it’s more likely due to a leak or consumption within the system rather than evaporation. Inspecting for leaks and using the proper type and quality of fluid will help maintain the transmission’s optimal performance.

How to Find Out What Transmission I Have

To determine the type of transmission in your vehicle, you can: 1) Check the vehicle’s owner’s manual. 2) Look for a sticker or plate on the transmission itself with identifying information. 3) Use the Vehicle Identification Number (VIN) to search for the vehicle’s specifications online or through the manufacturer’s database. 4) Visit a mechanic or dealership, and they can typically provide this information based on your car’s make, model, and year.

Can Low Transmission Fluid Cause Overdrive Light to Flash

Yes, low transmission fluid can cause the overdrive light to flash. Insufficient fluid can lead to improper pressure or inadequate lubrication, making the transmission system work harder and triggering warning indicators. It’s essential to address this promptly to avoid potential damage.

What Does Service Engine Mean

The ‘Service Engine’ or ‘Service Engine Soon’ light is an indicator that there is an issue within the engine management system or emission control system. It’s not specific about the nature of the problem, so it’s advisable to have the vehicle scanned with a diagnostic tool to pinpoint the exact issue.

What Would Cause All Warning Lights to Come On

All warning lights illuminating simultaneously could be due to a malfunction in the car’s electrical system, alternator issues, battery problems, or a fault within the vehicle’s central computer or Body Control Module. Such occurrences might also be intermittent, often indicating a loose connection or grounding issue.

What Does Service Transmission Mean

The ‘Service Transmission’ alert suggests that there’s an issue or potential malfunction within the transmission system. It could be related to the transmission fluid, mechanical components, or electronic controls. Prompt attention by a professional is recommended to diagnose and address the issue.

What Does the Red Oil Light Mean

The red oil light typically indicates low oil pressure. This could be due to low oil levels, a malfunctioning oil pump, or a blockage in the oil system. It’s crucial to address this immediately, as driving with inadequate oil pressure can cause severe engine damage.

How Long Can You Drive With Transmission Light On

It’s not recommended to drive with the transmission warning light on. This light indicates a potential issue with the transmission system, which can worsen if not addressed, leading to more extensive damage and costly repairs. If the light comes on, it’s best to consult a mechanic promptly.

Is It OK to Drive With Check Engine Light On

If the check engine light comes on and remains steady (not flashing), it’s typically safe to drive the vehicle for a short distance, but you should get it checked out soon. However, if the light is flashing, it indicates a severe issue that can damage the engine or emission system. In this case, it’s best to stop driving and seek immediate assistance.

What Causes a Transmission Control Module to Fail

Several factors can lead to Transmission Control Module (TCM) failure. These include electrical surges, water or moisture intrusion, heat exposure, or manufacturing defects. A malfunctioning TCM can result in shifting issues, decreased fuel efficiency, or total transmission failure.

How Far Can I Drive on Low Transmission Fluid

Driving with low transmission fluid can damage the transmission due to inadequate lubrication and cooling. While there’s no specific distance threshold, it’s advisable to minimize driving under these conditions. If you suspect your transmission fluid is low, top it up or seek mechanical assistance as soon as possible.

1 Comment


  1. Theresa washburn

    thank you for takeing my information.I have a mazda 3 car its been a good car.I had to get a sensor put in because the at light came on .the car was good for a few days than it came on than went off than the check enjine came on.could this be in the wireing or something else .the mechanic said it could be a wire but cant get it looked at until his wwek.thank you and can you give me some advice.

    Reply

leave your comment


Your email address will not be published. Required fields are marked *
